How to Fasten Top Stops!!
C-style Top Stops were developed in the mid-30s by Talon Inc. They were continued to be used until it was changed to the simplified style in mid-40s. And other US zip manufacturers in same era also used same style or similar top stops.
Tools for shorten zippers and fasten top Stops:
Refer to the tools we recommend for shorten zippers and fasten top Stops.

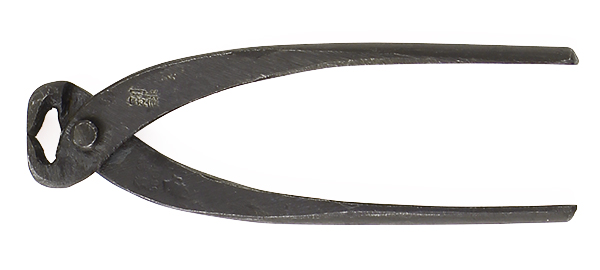

Kuikiri(4cm x 12.5cm)
This is a Japanese traditional wire cutter which works well for shorten No.5, No.7, No.10 zippers.
Wire Cutter(5.5cm x 15.5cm)
This is good for shorten No.3, No.5 zippers.
Flat Pliers(6cm x 16cm)
The Leading edge width is 4mm and the bottom width is 9mm. This flat faced pliers are good for fasten C-style top Stops.
- How To Fasten C-style Top stops on Talon Separating Zippers. -

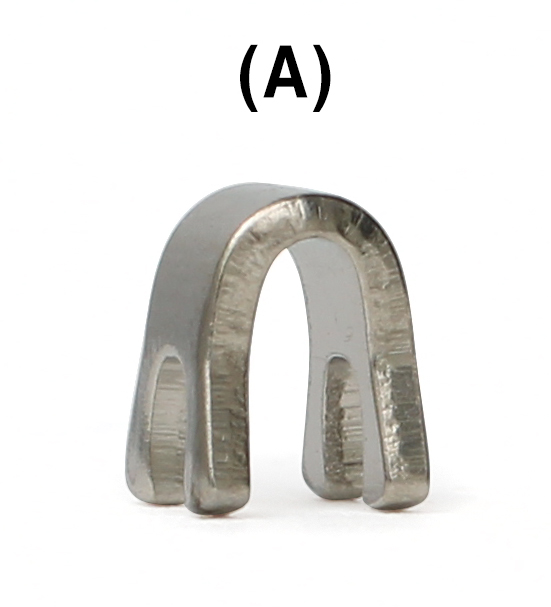

1) To Fasten the Top Stop(A)

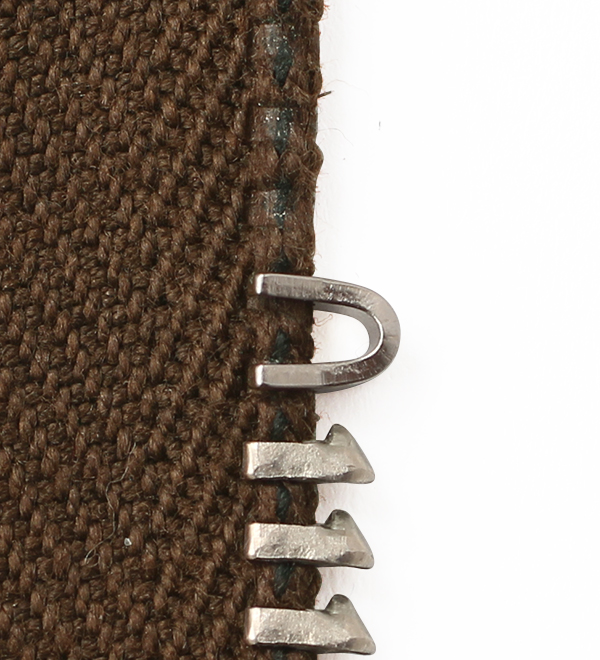

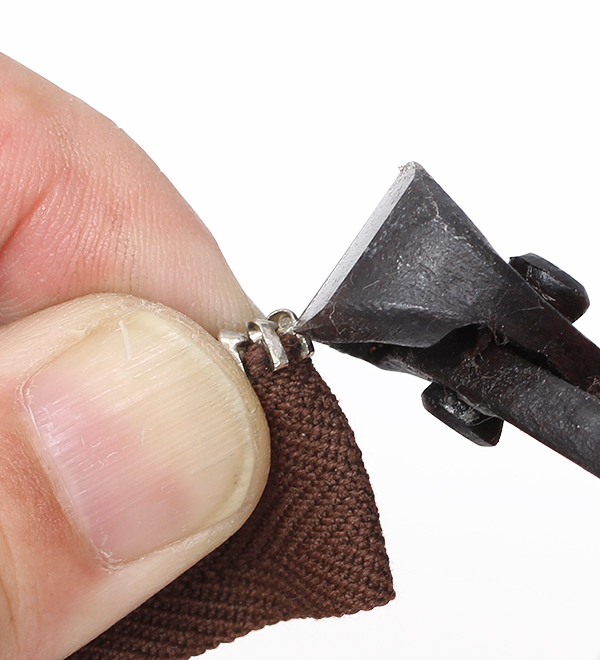

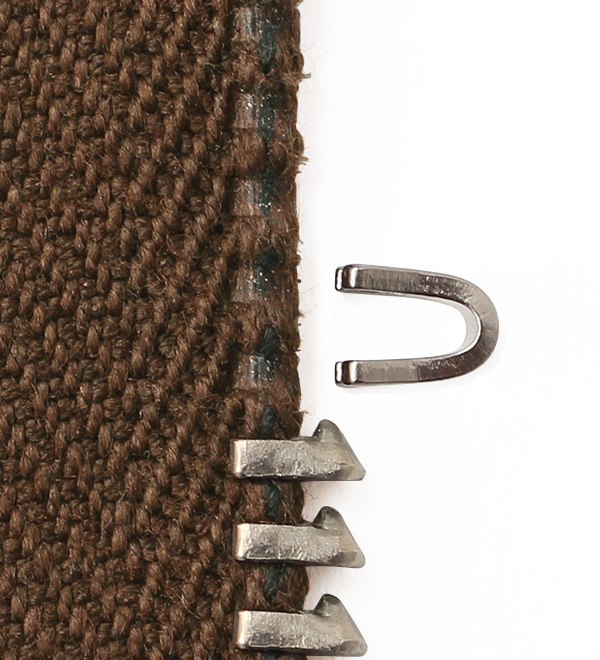

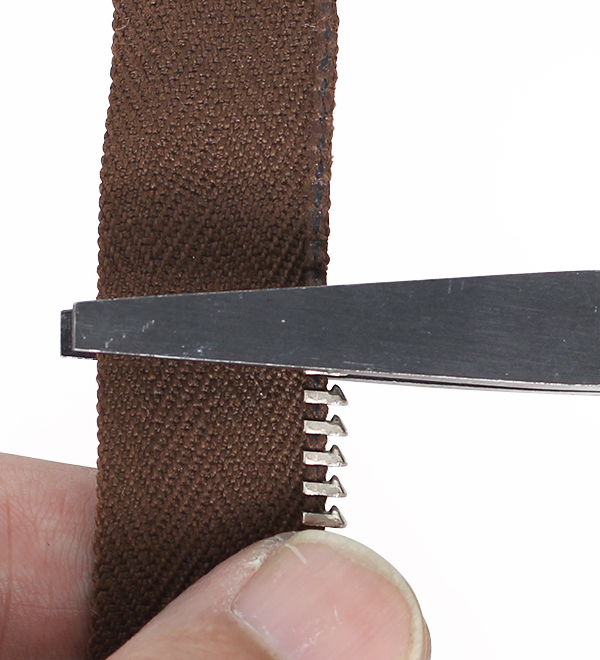

You can see the traces of removing the zip teeth on the code at the edge of the zip tape. Put the legs of the Top Stop(A) in the traces of the code. The width of the legs is same as the traces of two zip teeth so that it is not so hard for the legs to put in the code. Press the legs gently so that it will not hurt the code. Pressing is beter to do from front side and back side. Note) The left top tooth should be higher than the right top tooth when you complete the shortening the zipper.

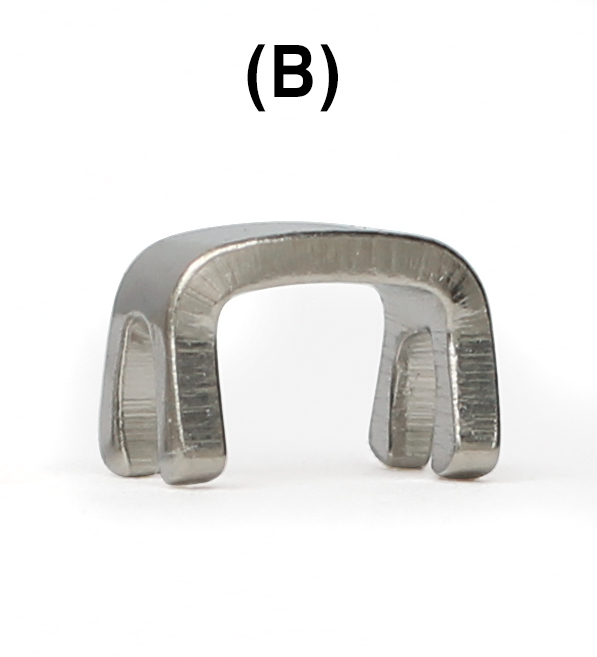

2) To Fasten the Top Stop(B)

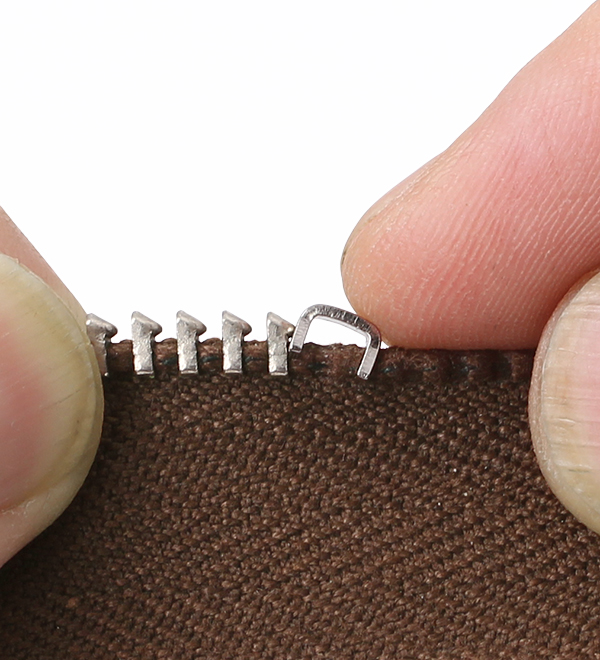

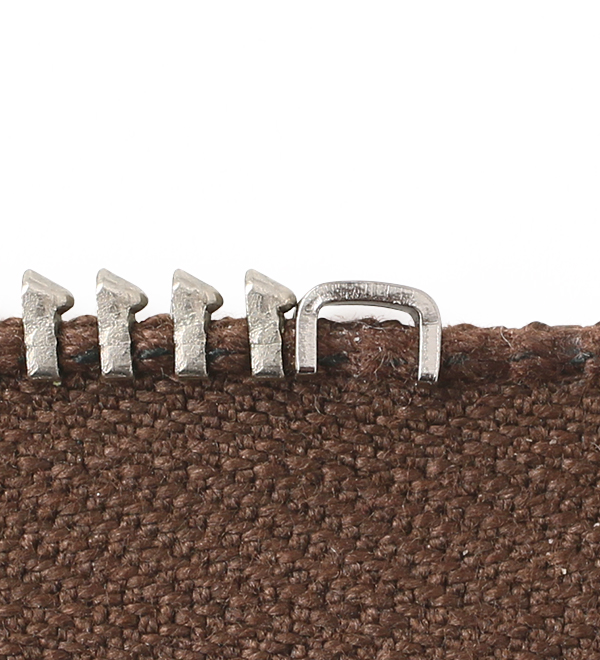

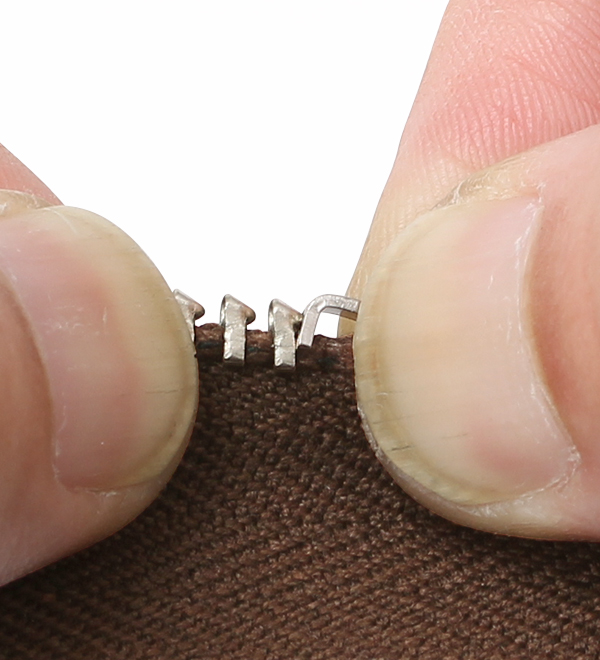

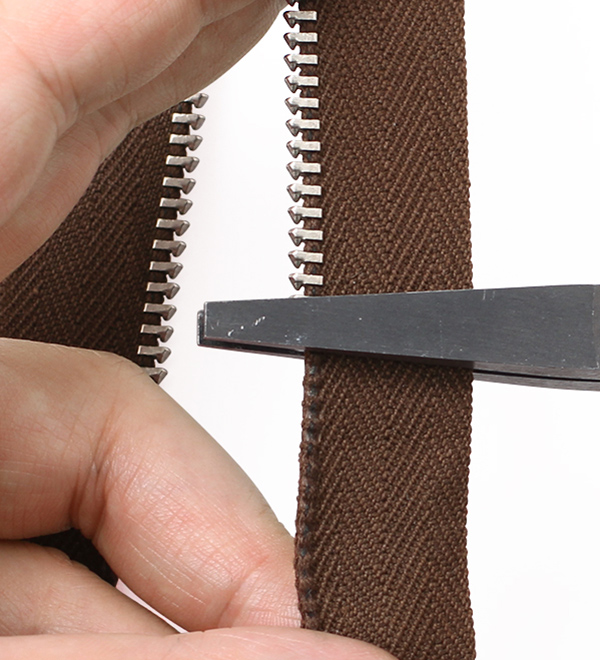

First, put the one leg of the Top Stop(B) in the second trace of the code. Then, push the other leg into the code along the top tooth while holding the head of the top stop. Press the legs gently so that it will not hurt the code. Pressing is beter to do from front side and back side same as Top Stop(A).
3) Adjustment of the Top Stops

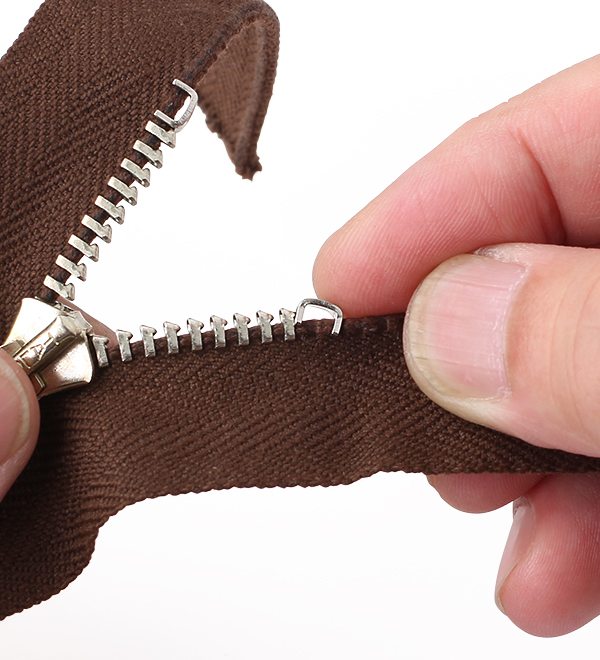

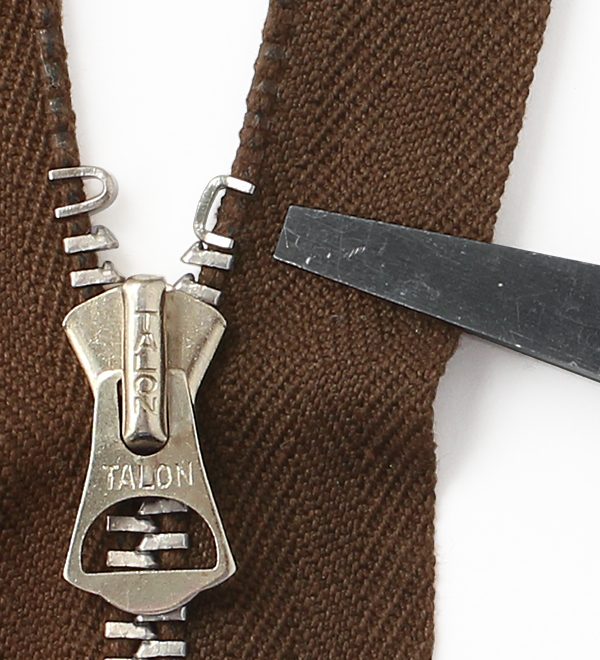

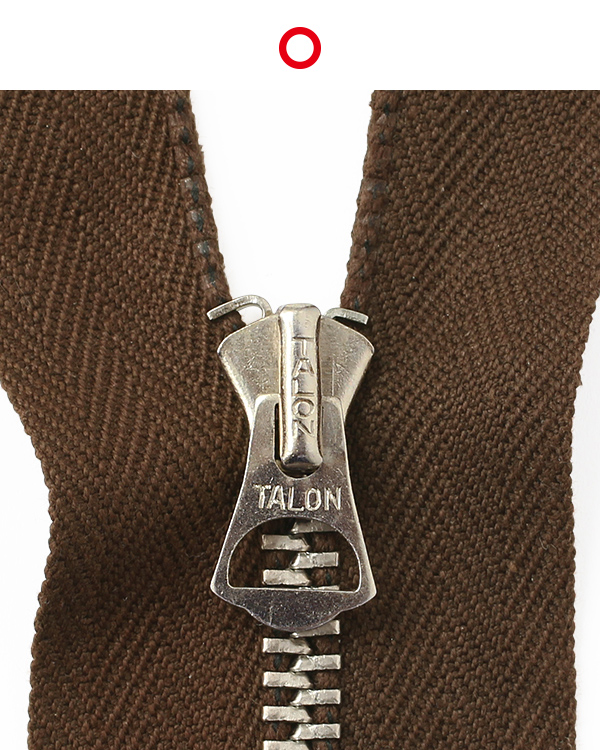

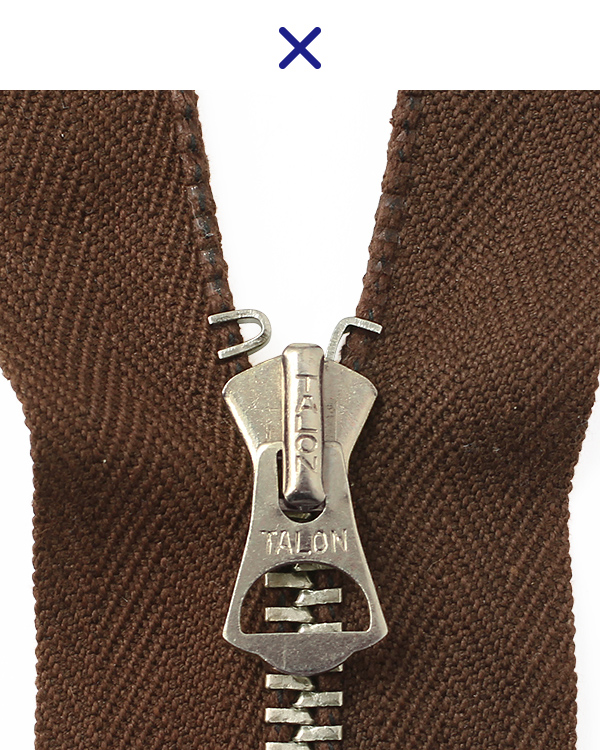

Confiirm if the slider can raise to the top as the photo and can let down smoothly. If it can not be raised to the top as the photo or can not be moved smoothly, it can be conceivable that pressing the legs is not enough. Press again the legs slightly harder while being carefull not to damage the code of the tape.
- How To Fasten C-style Top stops on Talon Non-Separating Zippers. -
Top Stop(B) is generally used at the both side of Talon Non-Separating Zippers. I don't think there is a strict rule which side is higher but the left top is higher in majority case.
1) To Fasten the Top Stop(B)

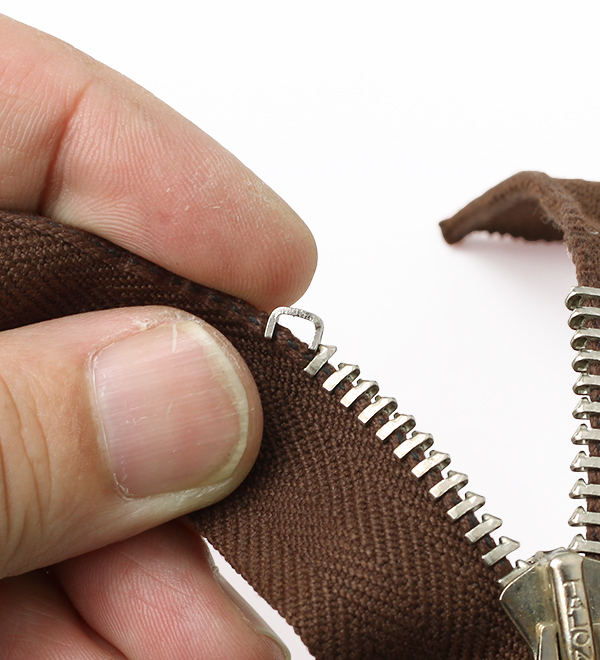

You can see the traces of removing the zip teeth on the code at the edge of the zip tape. Put the legs of the Top Stop(A) in the traces of the code. The width of the legs is same as the traces of two zip teeth so that it is not so hard for the legs to put in the code. Press the legs gently so that it will not hurt the code. Pressing is beter to do from front side and back side. Note) The left top tooth should be higher than the right top tooth when you complete the shortening the zipper.
2) Adjustment of the Top Stops

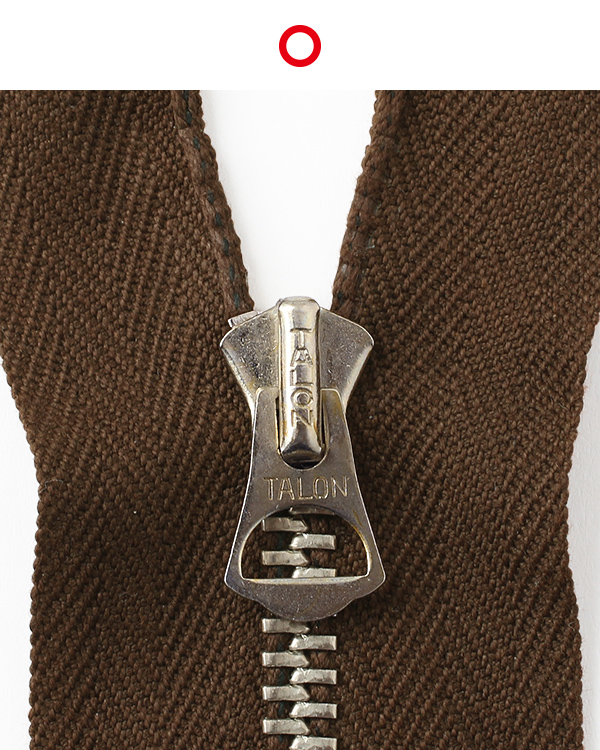

Confiirm if the slider can raise to the top as the photo and can let down smoothly. If it can not be raised to the top as the photo or can not be moved smoothly, it can be conceivable that pressing the legs is not enough. Press again the legs slightly harder while being carefull not to damage the code of the tape.
P. S.
This instruction is for Talon Zipper made from mid-30s to mid-40s. It can be sometimes used and sometimes not for late zippers or reproduction zippers. We recommend you to practice first at the extra part before use the top stops to your original zippers.
